Nose Extension Selection Chart

Nose Extension Selection Chart

  • A “fixed” Nose Extension has a paddle welded onto the end of the Nose Extension.
  • A Nose Extension without a reaction arm allows for more flexibility. *Please note that the reaction arm is not included and must be ordered separately.
  • Need a custom tool? Contact us for more information.

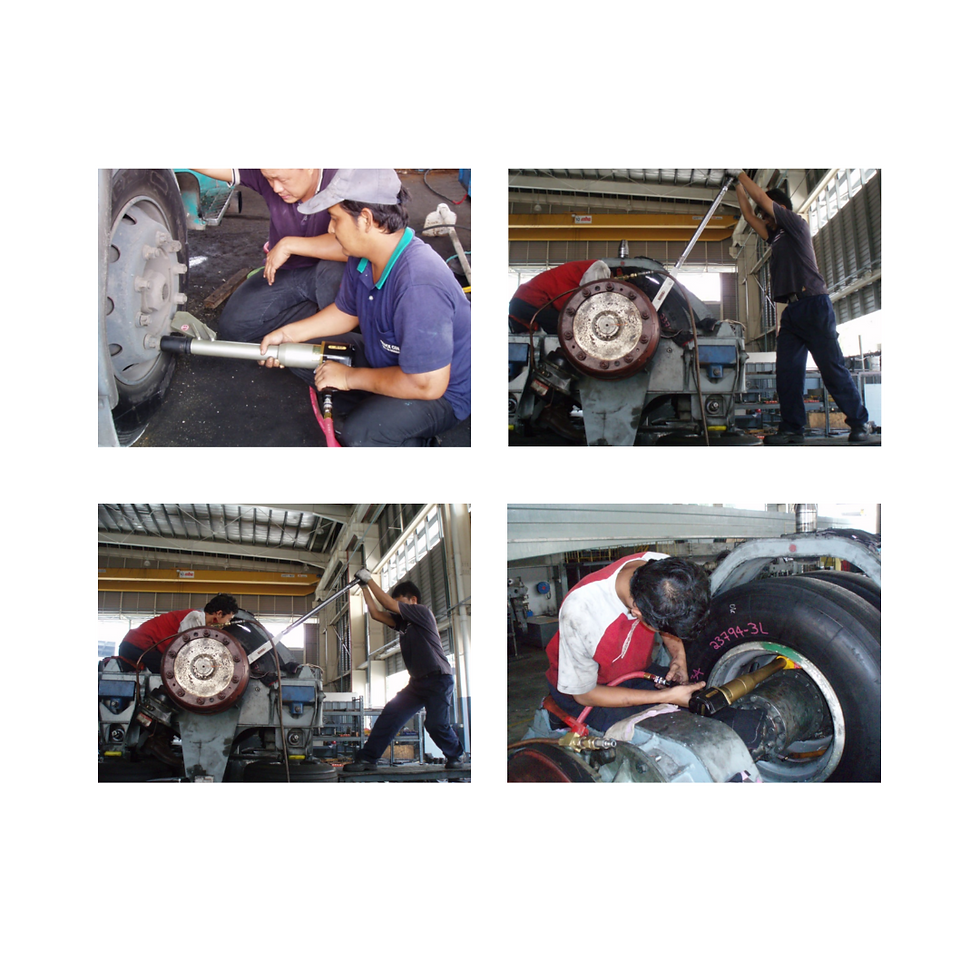

  • Hard-to-reach applications come with the territory in some industries, and at RAD Torque, we take that challenge seriously. Whatever flexibility you need, we’ve got nose extensions to help, with 48 options to choose from, available in imperial and metric sizes.

    We offer fixed nose extensions with paddles welded on to the end, as well as ones without any reaction arm to facilitate additional flexibility. And if we don’t have what you need off the shelf? Talk to us about designing a custom nose extension to meet your specific requirements.



    Part Number

    Description

    Dimension A

    Dimension B

    Dimension C

    Dimension D

    14195

    ABS 10GX NOSE EXTENSION 12"

    n/a

    12.75”

    1.75”

    n/a

    14200

    ABS 10GX NOSE EXTENSION 15"

    n/a

    15.75”

    1.75”

    n/a

    14205

    ABS 10GX NOSE EXTENSION 18"

    n/a

    18.75”

    1.75”

    n/a

    18185

    ABS 15DX NOSE EXTENSION 12''

    n/a

    13.75”

    2.0”

    n/a

    19058

    ABS 15DX NOSE EXTENSION 12''

    n/a

    15.75”

    2.0”

    n/a

    19059

    ABS 15DX NOSE EXTENSION 18"

    n/a

    18.75”

    2.0”

    n/a

    10259

    ABS 1800NG NOSE EXTENSION 12"

    5.0”

    12.7”

    2.0”

    3.5”

    10257

    ABS 1800NG NOSE EXTENSION 15"

    5.0”

    16.0”

    2.0”

    3.5”

    10258

    ABS 1800NG NOSE EXTENSION 18"

    5.0”

    18.0”

    2.0”

    3.5”

    12096

    ABS 25GX NOSE EXTENSION 12"

    5.0”

    13.0”

    2.0”

    3.25”

    12061

    ABS 25GX NOSE EXTENSION 15"

    5.0”

    16.0”

    2.0”

    3.25”

    12097

    ABS 25GX NOSE EXTENSION 18"

    5.0”

    18.5”

    2.0”

    3.25”

    11750

    ABS 34GX NOSE EXTENSION 12"

    5.6”

    12.5”

    2.0”

    3.4”

    11751

    ABS 34GX NOSE EXTENSION 15"

    5.6”

    15.5”

    2.0”

    3.4”

    11752

    ABS 34GX NOSE EXTENSION 18"

    5.6”

    18.5”

    2.0”

    3.4”





    10GX and 15DX Nose Extensions require a reaction arm. Refer to 10GX-R Reaction Arms on previous charts.
