Murphy 2 " 20P Pressure Swichgage®

Murphy 2 " 20P Pressure Swichgage®

Part Number
20P-150
20P-300

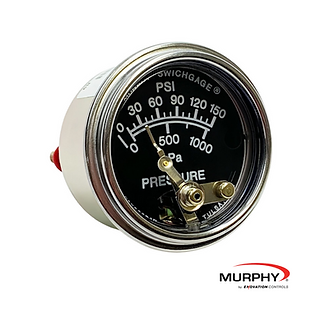

Murphy Engine Oil Pressure Gauge ( 20P-150 )



Murphy Exhaust Tempurature Gauge ( 20P-300 )

  • Dial: White on black, dual scale; U.S.A. standard scale is psi/kPa; U.K. standard scale is psi/bar; others available (see How to Order).


    Case: Plated steel; mounting clamp included (except for direct mount models).


    Bezel: Polished stainless steel,standard; others are available (see How to Order).


    Lens: Polycarbonate, high-impact.


    Oil: Silicon Oil.


    Temperature Range:
    Ambient: -40°F (-40°C) thru 150°F (66°C).
    Process: -40°F (-40°C) thru 250°F (121°C).


    Process Connection: 1/8-27 NPTM brass.


    Sensing Element: Beryllium copper diaphragm.


    Gage Accuracy (% of Full Scale):

    RANGE LOWER 1/4 MIDDLE 1/2 UPPER 1/4
    ≤300 psi (20 Bar) ±3% ±2% ±3%
    400 psi (28 Bar) ±3% ±3% ±5%



    Maximum Pressure: See Pressure Ranges and Factory Settings table on page 2.


    Adjustable Limit Contact (20P and 25P):

    SPST contact; pilot- duty only, 2 A @ 30 VAC/DC;

    Normally Close (NC) when the low limit is met.

    Normally Open (NO) when pointer is in normal operating range. Contacts are gold flashed silver.



    Limit Contact Adjustment: by a 1/16 in. hex wrench thru 100% of the scale.


    Limit Contact Wire Leads: 18 AWG (1.0 mm2) x12 in. (305 mm).


    Snap-Switch Rating (20PE and 25PE):
    SPDT, 3 A@ 30 VDC inductive; 4 A @ 125 VAC inductive.
    Snap-Switch Wire Leads: 20 AWG (0.75 mm2) x12 in. (305 mm).


    Unit Weight:

    20 Series: 8 oz. (0.23 kg).
    25 Series Models: 11 oz. (0.31 kg).


    Unit Dimensions:

    20 Series: 3 x 3 x 3 in. (76 x 76 x 76 mm).

    25 Series Models: 4-3/4 x 4-3/4 x 2-3/4
    in. (121 x 121 x 70 mm).
